11m Zhongtong New Diesel Bus

Product Description

The 11m Zhongtong New Diesel Bus, part of the H12 series, is a 12-meter high-deck touring coach manufactured by Zhongtong Bus Holding Co., Ltd. Overall dimensions: 12000mm (length) × 2500mm or 2550mm (width) × 3450mm, 3330mm, 3620mm or 3500mm (height), with a wheelbase of 6150mm. Gross vehicle weight is 17000kg, and curb weight ranges from 11300kg to 12600kg depending on configuration. Seating capacity ranges from 24 to 56 persons as per vehicle announcement.
Powertrain features a Weichai WP8.320E61 in-line six-cylinder diesel engine with a displacement of 7800mL, rated power of 235kW (approx. 319 hp), net power of 230kW, and fuel consumption of 20.1L/100km, meeting China VI emission standards. The chassis is equipped with standard air suspension (rear C-beam suspension), with leaf spring suspension (spring leaf counts -/-,8/11) available as an option. Maximum speed is electronically limited to 100km/h, complying with commercial coach regulations.
Passenger doors are pneumatic outward-swing type (not folding doors), available in single front door or front+middle door configurations, with an optional small window under the passenger door. Side windows are single-glazed tempered glass, with optional push-pull type side windows. The luggage compartment is a through-type design with a generous volume of 8.5 cubic meters, featuring aluminum alloy upward-swing doors for easy access to large baggage. The air conditioning system is a high-capacity roof-mounted unit — when installed, vehicle height is 3450mm or 3620mm; when omitted, height is 3330mm or 3500mm. An independent water-circulating heating system is standard.

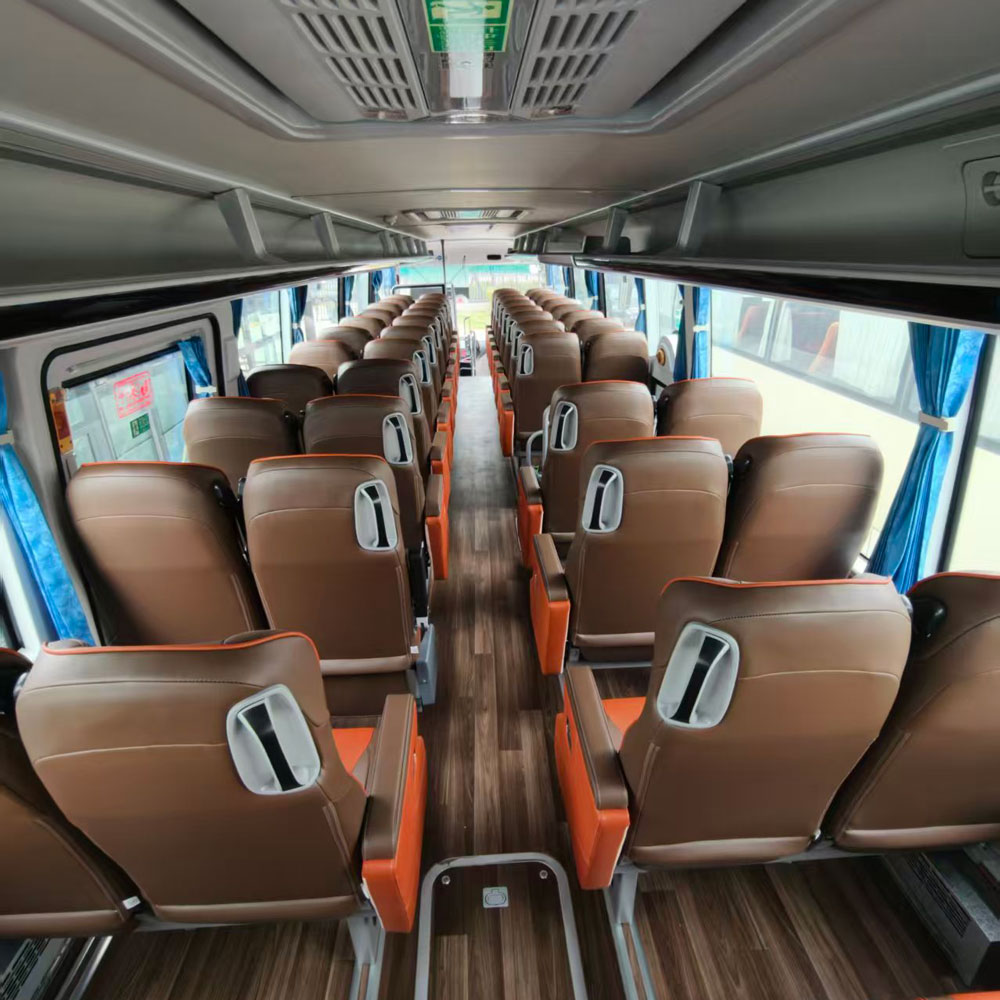

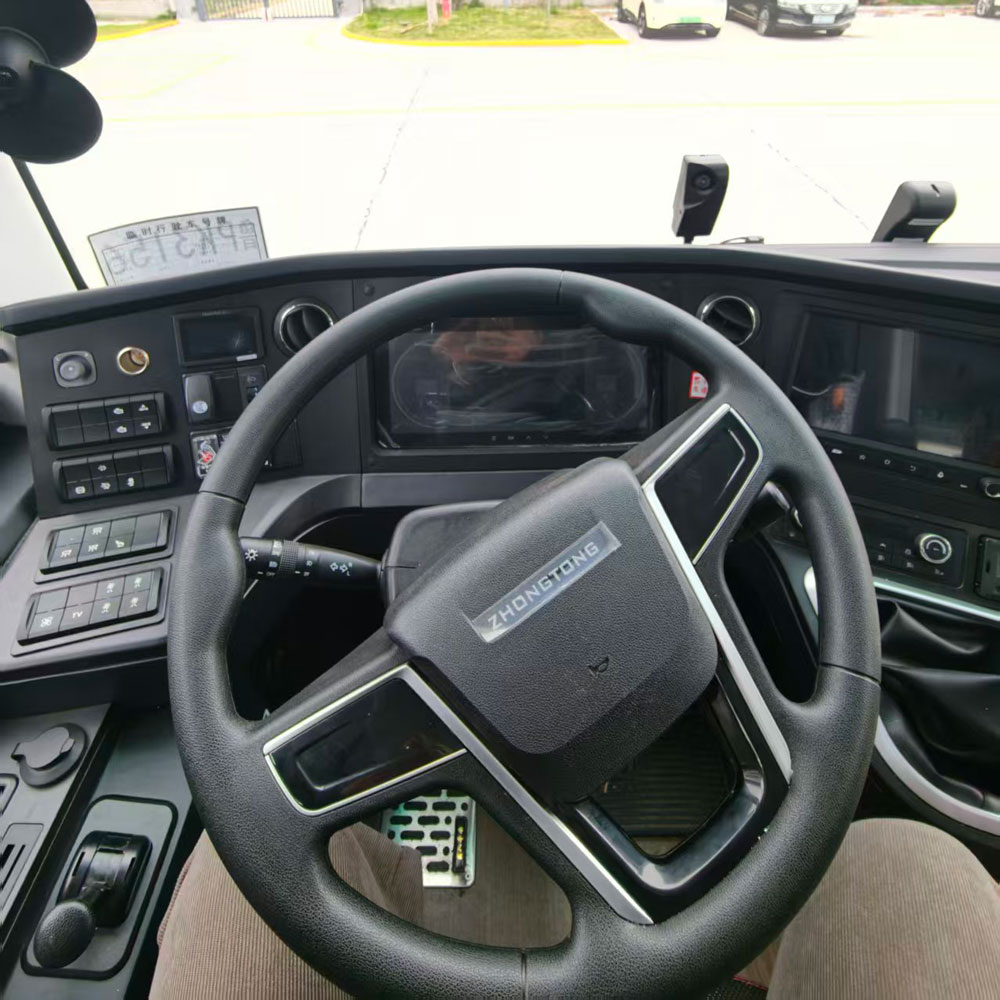

For comfort and electrical systems, the interior features H12 series deluxe design with aviation-style overhead luggage racks and wear-resistant floor covering. The seating system features ergonomic design; passenger seats are upholstered in eco-friendly fabric for comfort and health. The driver's seat is a multi-directional air-suspension type, effectively reducing fatigue during long-distance driving. Optional leather seats or premium fabric upholstery are available based on operational requirements. Two seating layout options are offered: 2+2 standard layout (24-54 seats) and 2+1 business layout (24-38 seats). The electrical system comes standard with a CAN bus instrument cluster, tachograph with satellite positioning, electronic speed limiter (100 km/h), ABS, and an automatic emergency braking system (AEBS). ETC is optional. This model meets all safety and fleet management requirements for commercial coaches and is positioned for mid-to-high-end tourism, passenger, and group transport services. For further information on the latest configurations, pricing, and procurement inquiries, please contact Zhongtong Bus Holding Co., Ltd. directly or its authorized dealers.

Product Configuration Table
